Electric Modeling Items
Accessories for Electric Modeling


DN Power Micro-Controlled LiPo/Li-Ion
Parallel Charger w/ LCD Display

ELE-00 DN charger/$85.00
1. Input voltage: DC 11V~15V. The working electric current is less than 6A when it is charged in full load. The current of the fuse is 10A which could prevent short circuit.
2. The charge current is 0.2A~2.0A in adjusting steps of 0.2A and is set by the buttons on the board.
3. Controlled by 4 separated internal micro computers. Charge 1S-4S battery separately. There is no other serial charging + balancer setup on the market.
4. 4 separated JST style charging ports and one general charging port.
5. Large LCD display. Real-time display of voltage and charging processing.
6. Low voltage protection. Charger won't charge any cell if voltage is lower than 2.7v.
7. Automatically stop charging when it's finished and indicate with buzzer.
8. 4 separated parallel charging circuits ensure your battery is 100% fully charged.
9. Charge mode of the balanced parallel connection:
  A. charge in parallel connection for a single cell or four single cells at once.
  B. charge in parallel connection for a pile of two series-wound lithium cells or two   piles of two series-wound lithium cells at once.
  C. charge in parallel connection for a pile of three series-wound lithium cells or   one single lithium cell at once.
  D. charge in parallel connection for a pile of four series-wound lithium cells
10. Workingtemperature rating: -20 ~ 60 C
11. Full circuit protection: protect the charger and battery even when the battery or the power supply connections are reversed.
12. General charging port will allow you charge any lipo battery which has balancing leads.



Thunder Power Batteries
Thunder Power Lithium Polymer Batteries

We stock only the latest cell technology. Our 1320/3 packs have the cell balance 4 pin plug. We also have the Thunder Power cell balancers and Thunder Power chargers in stock

READ THIS WARNING BEFORE PURCHASING ANY LIPO BATTERIES! PDF FORMAT
Click on the above text


Thunder Power 1320mah 3 cell 11.1 volt LiPo Battery with cell balance 4 pin plug.

hunder Power
SPECIFICATIONS
Thunder Power 1350 mAh, 3 cells Pro Lite (11.1V), V-2, 4-pin balancer connector.
Rating: 13C (17A) continuous, 20C (27A) burst
Output: 11.1V Nominal, 1350mAh
Dimension: 1.3" x 2.5" x .75" (3 oz)

TP1350 V-2 11.1 Volt.

Thunder Power 2100 mah 3 cell 11.1 volt LiPo Battery.


SPECIFICATIONS
2100 mAh, 2 cells (7.4V), 4-pin balancer connector
Rating: 15C (31.5A) continuous, 20C (42A) burst
Output: 7.4V Nominal, 2100mAh
Dimension: 1.3" x 3.86" x .51"
Weight: 3.35 oz

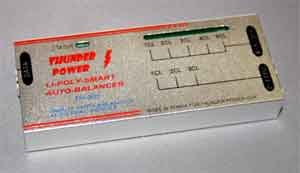

ThunderPower cell balancer.

Balances in the TP-ProLite batteries with the second pigtail. A must to make sure that each cell in your battery packs are kept in balance.

Blancer
ELE-19 Thunderpower Balancer
TP-205 $55.00

THUNDER POWER TP425 LITHIUM POLYMER CHARGER

The TP-425 charger is specifically designed to charger Lithium Polymer batteries only.

Features:
Ultra high speed power system
Light weight and fully capable to charge up to 2500 mah/4 cells in series
Easy setting for various battery pack parameters
Reverse polarity protection circuitry (input/output)
Easy monitoring indicators (current and voltage charge status)
Beep alerts fault conditions or charge is complete
Safe mode automatic cell count
Specifications:

Input power source: 11v-15v DC, requires 4 Amps to charge at maximum rate.
Charge voltage: 3.7 V-7.4 V-11.1 V-14.8V (1 cell - 4 cells in series)
Charge Current: 300mA-500mA-800mA-1300mA-2000mA-2500mA
Full charge voltage: 4.2 V per cell
Size: 1.62" x 4" x 0.62" (42 mm x 102 mm x 16.2 mm)

ELE-18 Thunderpower Charger TP-425C $55.00


Electric Propellers

GWS Hyper Drive..




GWS Hyper Drive





8 x 4 GWS Hyper Drive

9 x 5GWS Hyper Drive
10 x 8GWS Hyper Drive

11 x 7 GWS Hyper Drive

Click on the image for more Propellers



More Accessory Items for your Electric

        Blenderm Tape

Are you tired of the tape coming loose on your electric flying surfaces? This is the only tape that really works on all of the foam airplanes for hinging. It is thin, flexible and has a very aggressive adhesive. It stays where you put it. Use it on all electric airplanes that use the tape to hinge the flying surfaces with tape. Have a roll in your tool box and you can use it as intended to patch up cut fingers!
1" Width

Carbon Fiber Tubes
and Rods


Click on Image for more carbon fiber
Recommended:
060 x 36" Carbon rod
125 x 36" Carbon tube
157 x 36" Carbon tube
188 x 36" Carbon tube
118 x .019 x 36" Carbon flats

Foam Safe/Oderless CA
Medium 1/2 Oz
SUPER-GOLD™

ELE-74


Foam Safe Oderless CA

SUPER-GOLD+™
Thin 1/2 Oz
ELE-72



Bob Smith IC-2000™ CA
Medium 1/2 Oz
CPR-70

Rubber-toughened cyanoacrylate that forms superior shock resistant bonds on non-porous surfaces. The black colored CA has added flexibility for the bonding of metals, fiberglass, rubber, carbon-fiber and other advanced materials. For model use, IC-2000™ is ideal for the bonding of bulkheads, formers and servo rails to the inside of fiberglass hulls and fuselages. Setup time is 20-40 seconds, which can be accelerated with INSTA-SET™. When cured, IC-2000™ is pliable enough to be carved with a hobby knife.

INSTA-CURE™ 1 Oz.
Insta-Cure
Water-thin viscosity that wicks deep into joints by capillary action and cures in a matter of a few seconds. Surfaces to be bonded must be tight fitting and should be held together while you apply the CA around the edges of the seam. At the moment CAs cure, they give off a vapor that can irritate the nose and eyes, so be prepared. Thin CAs work very well on balsa since they penetrate into the wood and form more than just a surface bond.
CPR-73 .


Ca Activator Foam Safe
CPR-75
These are 10 ounce cans of a great kicker. You will use it to the bottom of the can, and that will take you a long time. The nozzle does not plug and will spray evenly for the entire can, not turn into a stream. It will not evaporate while is sitting on your workbench.

I have not found any foam that it will bother. It also works on all Ca's. It does not make it turn to "popcorn"; it just makes it cure very quickly.

INSTA-SET™ Kicker 2 oz
Insta-set

BSI INSTA-SET™ CA Activator Foam Safe.
INSTA-SET™ in a spray bottle is normally used to cure the CA that flows from joints when parts are pressed together. INSTA-SET™ is formulated with a strawberry scent and activates CA in 6 to 8 seconds without any degrading of the CAs strength, which can occur with many other accelerators. It is compatible with all surfaces, even clear plastic and white foam. CPR-72

Commercial Velcro
2"x12
" ELE-76


Both hook and loop included $2.50

Ultra Light
Landing Gear ELE-78

Price: $15.00
Landing gear, ready to install, with wheels.
Click here or on picture for further instructions.
Item
Type
Description
 Price

ELE-15

EP 1300

Electric Power 1300mah 11.1 volt 3 Cell LiPo

$35.00

ELE-14

TP 2100

Thunder Power 2100 mah 11.1 volt 3 Cell LiPo

$70.00

ELE-16

TP 1300

Thunder Power 1320 mah 11.1 volt 3 Cell LiPo

$55.00

ELE-19

TP

Thunder Power Balancer TP-205

$55.00

ELE-18

TP

Thunder Power Charger TP-425C

$55.00

ELE-00

DN Charger

Micro-Controlled LiPo/Li-Ion
Parallel Charger w/ LCD Display

$85.00

ELE-34

GWS

8 x 4 Hyper Drive prop

$ 2.75

ELE-35

GWS

9 x 5 Hyper Drive prop

$ 2.75

ELE-36

GWS

10 x 8Hyper Drive prop

$3.00

ELE-38

GWS

11 x 7 Hyper Drive prop

$3.25

ELE-60

3M

Blenderm tape 1" Wide

$ 2.50

ELE-62

DCRC

.060 x 36" Carbon Solid Rod

$ 3.00

ELE-64

DCRC

.125 x 36" Carbon Tube

$ 3.50

ELE-66

DCRC

.157 x 36" Carbon Tube

$ 4.00

ELE-68

DCRC

.188 x 36" Carbon Tube

$ 4.50

ELE-70

DCRC

.118 x .019 x 36" Carbon Flats

$ 4.00

ELE-72

SUPER-GOLD+™

BSI Foamsafe CA 1/2 Ounce
Thin

$ 6.75

ELE-74

SUPER-GOLD™

BSI Foamsafe CA 1/2 Ounce Medium

$ 6.75

CPR-70

IC-2000™

BSI IC-2000™ CA 1/2 Ounce Medium

$7.50

CPR-72

BSI Insta-Set™
Kicker

BSI Insta-Set Foam Safe ™ CA Activator
2 oz

$5.00

CPR-73

BSI Insta-Cure™ 1 oz

BSI Insta-Cure™ Thin CA 1 oz

$5.00

CPR-75

Activator 10 Ounce

CA Activator Foam Safe, Large Spray Can

$15.00

ELE-76

Velcro

Velcro Mounting 2 x12"

$ 2.50

ELE-78

Kit

Ultra Light Landing Gear

$ 15.00





Onlineorder Order the Electric Items

Questions? Call Darrol
